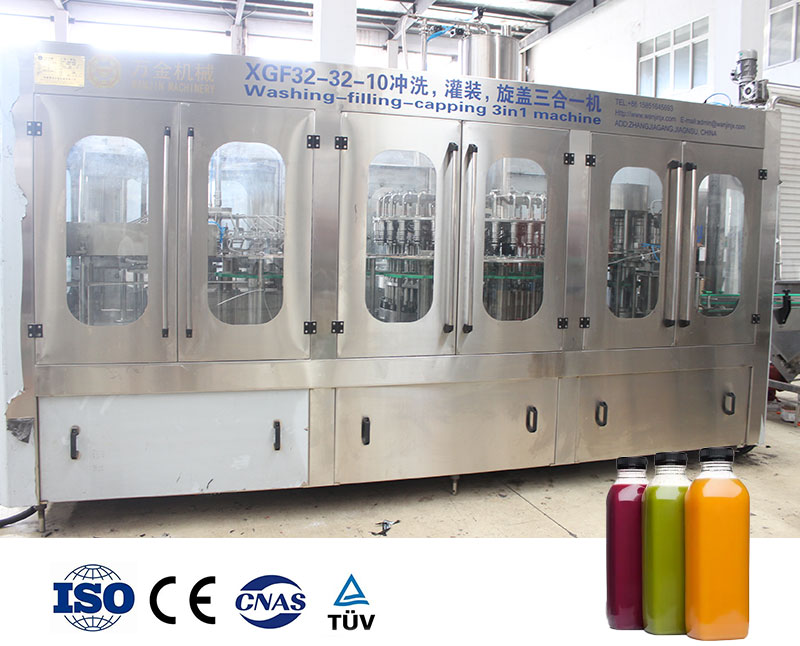

6000BPH Juice Tea Filling Machine
The filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Product Description
Application: juice, milk, vitamin drinks, functional beverage with particles, flesh, pulp, fruit pieces, etc.
Suitable for: PET bottles with all volumes and shapes.
Filling system: gravity filling.
Suitable for: PET bottles with all volumes and shapes.
Filling system: gravity filling.
Filling Machine Details display

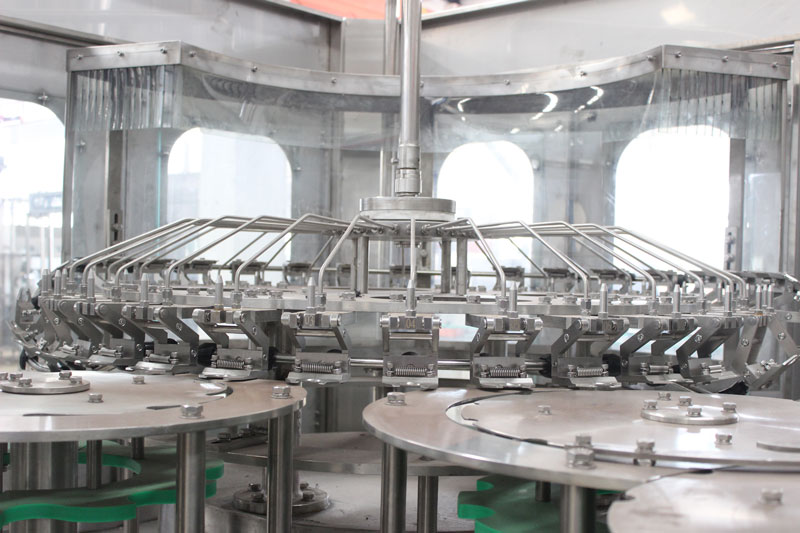

Washing part
Into bottle way is air conveyor direct connection with bottle dial. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. 304/316 stainless steel washing pump make the machine more durable.

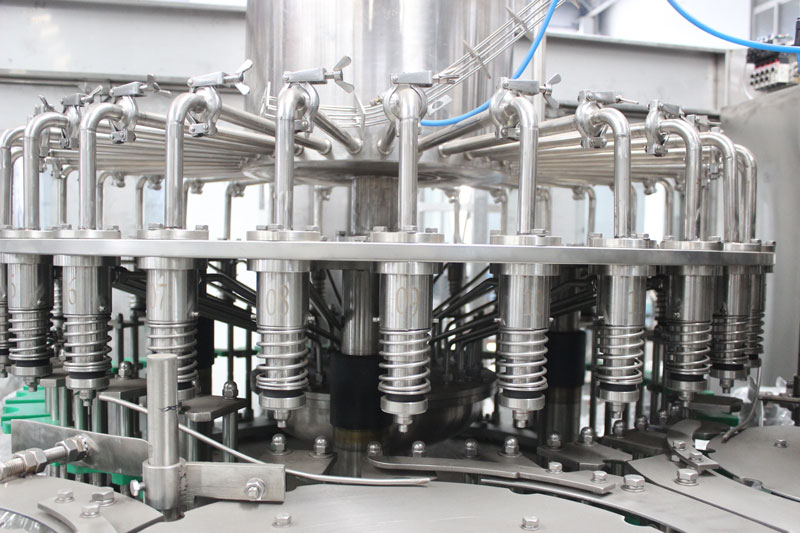

Filling part
mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of star wheel drive IV, bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail, and then open the bottling valve for bottling, after finishing bottling, it descends and loses the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of star wheel drive.

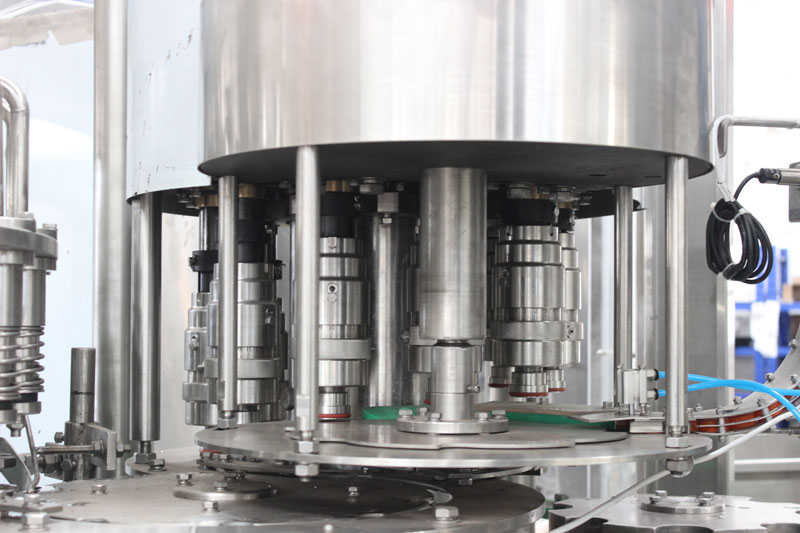

Capping part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304/316 stainless steel construction No bottle no capping Automatic stop when lack of bottle The capping effect is stable and reliable Defective rate ≤0.2%
