500ML PET Bottles Water Filling Machine

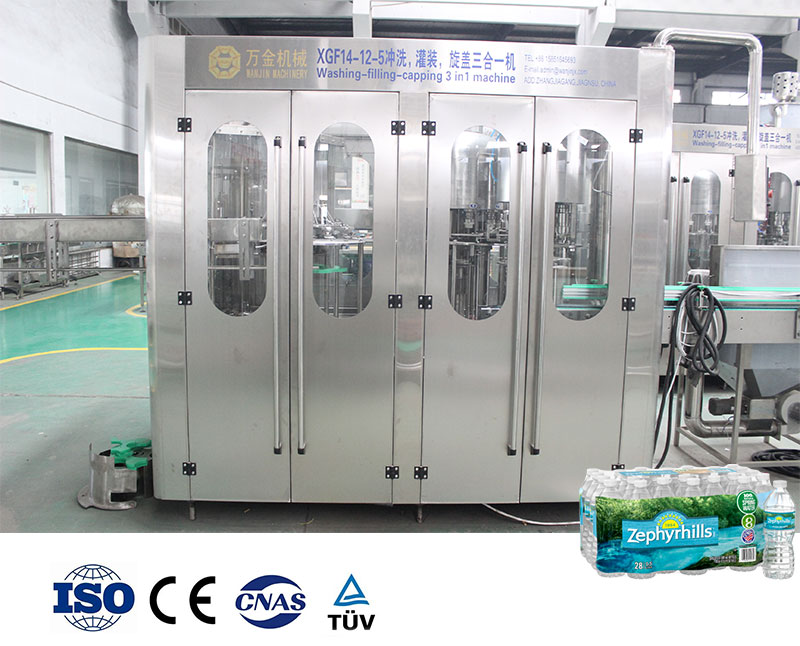

500ml PET Bottle Water Filling Machine

1.20000 bottles per hour in 500 ml pet bottles washing filling capping three in one
2. full automatic
3. stainless steel
4. separated control cabinet (touch screen, PLC), easy operate and maintaince
5. CE, SGS, ISO9001

Product Description

Our PET bottle water filling machine could be applicable quantitative filling and capping of drinking water, mineral water, pure water. It has functioned as follows: Disinfectant rinse, aseptic water rinsing; automatically I liquid filling tank, inlet material; feed bottles by air conveyor (or screw convey); automatically rinse, open valve and feed caps; not rinse, open valve and feed caps without bottles.
Compact structure; reasonable design and convenient operation and maintenance.PET bottle water filling machine is adopted frequency speed control, it runs stable and credibility. Material of contact with the product we use high food-grade stainless steel. After exchanging changeover parts, it is applicable for different kinds of PET bottle filling.
We adopt advanced touch screen operation and realize human-machine communication. The function of the control system as follows: product speed control, automatic stop with faults and take count of output,.etc.

Filling Machine Details display

Washing part

The washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray, etc
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottleneck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water. then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; the shield can prevent sprinkling of cleaning water;

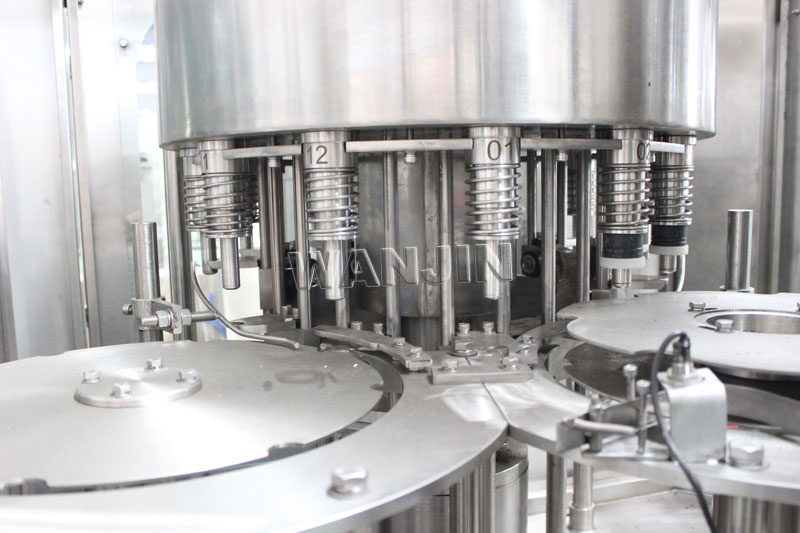

Filling part

The filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and oose the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.

Capping part

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304stainless steel construction
Cap unscrambler, cap drop rail and capper
Minimum bottle crash during capping
