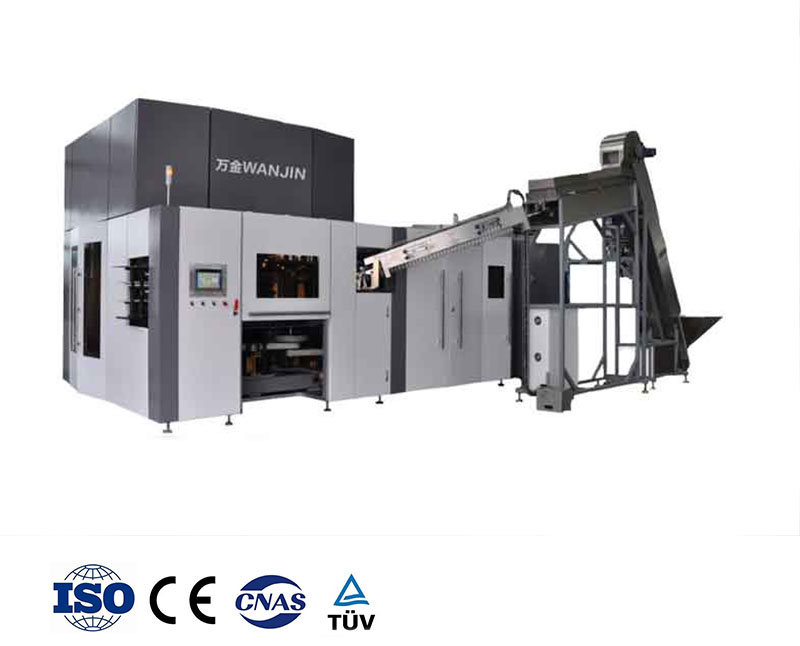

Rotary bottle blow molding machine

Rotary bottle blow molding machine

1. The cam linkage servo drive system is used to integrate the actions of opening and closing, clamping, and lifting of the bottom mold. It greatly shortens the blowing cycle, improves the output, and achieves high efficiency and energy saving effects.
2. The oil-free high pressure air compressor core parts (PTFE) piston rings has been proven reliable in PET industry with 24 hours continuous operations. With experienced technical team, design engineering focus on low speed, low piston load with specific operating temperature to optimism piston rings life span and other moving components
3. Continuously turning the dial to feed the blank, achieving a fast, efficient and stable blank feeding effect.
4. Long piston stroke:10-30% more as compare with similar industry.

Product Description

WJ-XC-4

WJ-XC-4 Rotary blowing machine covering scientific areas like photonics, mechanics, electricity and gas. Servo system is applied in the machine to achieve synchronized control of the whole system, realizing the integrating control and manufacture of each unit. As a result, efficiency of the production can be enhanced, investment can be reduced, and energy consumption and maintenance cost can be lowered as well.

Machine Weight

(preform unscramble excluded)

14T



Height

3.2M

No. of Cavities

4PCS

Capacity: water

8.000BPH(0.5L)

Bottle Volume (L)

0.25-1.5

Material of Preform

PET

Diameter of Supporting Ring

φ34

Max. Diameter of Bottle

105mm

Max. Height of Bottle

324mm

Preform Interval in Heating Oven

40 mm

Compressed Air of Control

Inlet Pressure of Machine

With the function of HP air recycling

Purity of Inlet Compressed Air

Accord with ISO8673-1

Consumption of Compressed Air

With the function of HP air recycling

Compressed Air of Blowing Unit

Inlet Pressure of Machine

3.6-4MPa

Purity of Inlet Compressed Air

Accord with ISO8573-1

Consumption of Compressed Air

12Nm3/min(0.5L,8000BPH)

Air Compressor

14Nm3/min+ Air Compressor Loss

Cooling System for Preform Heating Oven

Inlet Temp. and Pressure of Cooling Water

18-22℃  /  4.0bar

Flow Rate and PH Value of Cooling Water

4m3/h   PH 7-8

Difference of Inlet and Outlet Temperature 8-10℃

Cooling Water of Mold

Inlet Temp. and Pressure of Cooling Water

8-15℃  /   4.0bar

Flow Rate and PH Value of Cooling Water

10 m3/h  PH 7-8

Difference of Inlet and Outlet Temperature 3-5℃

WJ-XC-6

WJ-XC-6 Rotary blowing machine covering scientific areas like photonics, mechanics, electricity and gas. Servo system is applied in the machine to achieve synchronized control of the whole system, realizing the integrating control and manufacture of each unit. As a result, efficiency of the production can be enhanced, investment can be reduced, and energy consumption and maintenance cost can be lowered as well.

Machine Weight

(preform unscramble excluded)

15T



Height

3.2M

No. of Cavities

6PCS

Capacity: water

12.000BPH(0.5L)

Bottle Volume (L)

0.25-1.5

Material of Preform

PET

Diameter of Supporting Ring

φ34

Max. Diameter of Bottle

105mm

Max. Height of Bottle

324mm

Preform Interval in Heating Oven

40 mm

Compressed Air of Control

Inlet Pressure of Machine

With the function of HP air recycling

Purity of Inlet Compressed Air

Accord with ISO8673-1

Consumption of Compressed Air

With the function of HP air recycling

Compressed Air of Blowing Unit

Inlet Pressure of Machine

3.6-4MPa

Purity of Inlet Compressed Air

Accord with ISO8573-1

Consumption of Compressed Air

12Nm3/min(0.5L,1200BPH)

Air Compressor

14Nm3/min+ Air Compressor Loss

Cooling System for Preform Heating Oven

Inlet Temp. and Pressure of Cooling Water

18-22℃  /  4.0bar

Flow Rate and PH Value of Cooling Water

4m3/h   PH 7-8

Difference of Inlet and Outlet Temperature 8-10℃

Cooling Water of Mold

Inlet Temp. and Pressure of Cooling Water

8-15℃  /   4.0bar

Flow Rate and PH Value of Cooling Water

10 m3/h  PH 7-8

Difference of Inlet and Outlet Temperature 3-5℃

WJ-XC-8

WJ-XC-8 Rotary blowing machine covering scientific areas like photonics, mechanics, electricity and gas. Servo system is applied in the machine to achieve synchronized control of the whole system, realizing the integrating control and manufacture of each unit. As a result, efficiency of the production can be enhanced, investment can be reduced, and energy consumption and maintenance cost can be lowered as well.

1.Embryo management

The embryo management mechanism uses fully automated equipment to transport the disordered and embryonic tubes in the hopper directly to the embryo management bucket by a pulley device. Each embryo tube is sequentially sorted by its own gravity and the axis of the embryo management shaft at the bottom of the management bucket. In a neatly arranged row, at the same time, under the action of the impeller sweep, the embryo tube after the preliminary arrangement is reorganized, and then arranged in the orbit of the embryo, arranged in a straight line, tight and neat. The front end of the orbit is connected to the star wheel embryonic mechanism, and the neatly arranged embryo tubes will be moved one by one into the star wheel device.

2 .Heating light box mechanism

The heating mechanism adopts a unit heating system, which is composed of 4 groups of heating furnaces, each of which has 6 to 8 layers (standard configuration 7 layers) of infrared lamps.
Through various heating stages, the embryo tube can be well heated, and the embryo tube inserted on the heating head can rotate continuously on the circuit to achieve the best heating effect. At the same time, adjusting the pressure regulating unit on the touch screen can fully realize the temperature adjustment of five thousandths of the preform. The tiny temperature control makes the preform more suitable for the requirements of the bottle blowing process.
Unitized heating system, the heating lamp box can be turned outward more than 90 °, which is convenient for replacing the lamp tube.

3. Blowing unit

The secondary blowing system is used to ensure the stable molding quality of the bottle and meet the customer’s corresponding technical standards. In this stage, the preforms that have been preheated are placed in a blow mold that has been prepared, and the high-pressure inflation is performed in them. Blow the preform into the desired bottle. The fully automatic bottle blowing machine completes the two operations of bottle blowing together through the operation of the robotic hand, eliminating the process of manually putting the preheated preform into the blowing mold in the middle. Greatly speed up the production rate.
