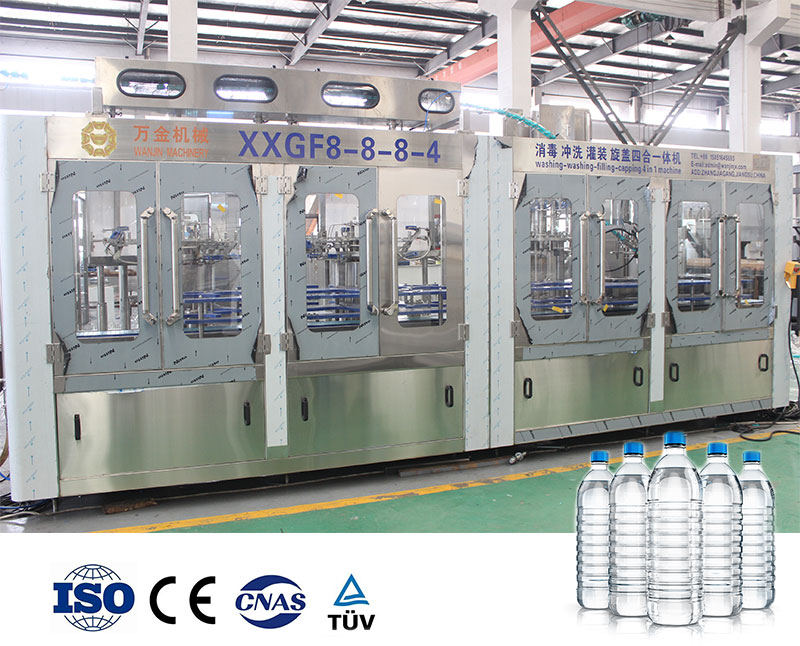

2000-3000BPH Water Filling Machine

2000-3000BPH Water Filling Machine

Rated capacity: 2000-3000BPH for 500ML bottle
Filling liquid: pure water
Filling bottle type: PET bottle: Max diameter 96mm, Max height 310mm. It is for consulting, we will produce the machine according client’s bottle samples.
Filling type: gravity filling. Cap: Standard screw plastic cap, we will produce the machine according client’s cap samples.
Filling temperature: room temperature.

Product Description

Water is a multifaceted product: natural spring water, purified water, carbonated water,flavored water… What process can be used to prevent bromate formation? How to deploy mechanical filling valves to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? The expert in liquid product filling, will always provide you with the best solution for your products.

Filling Machine Details display

Washing part

The washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray, etc
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottleneck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water. then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; the shield can prevent sprinkling of cleaning water;

Filling part

The filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and oose the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.

Capping part

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304stainless steel construction
Cap unscrambler, cap drop rail and capper
Minimum bottle crash during capping
